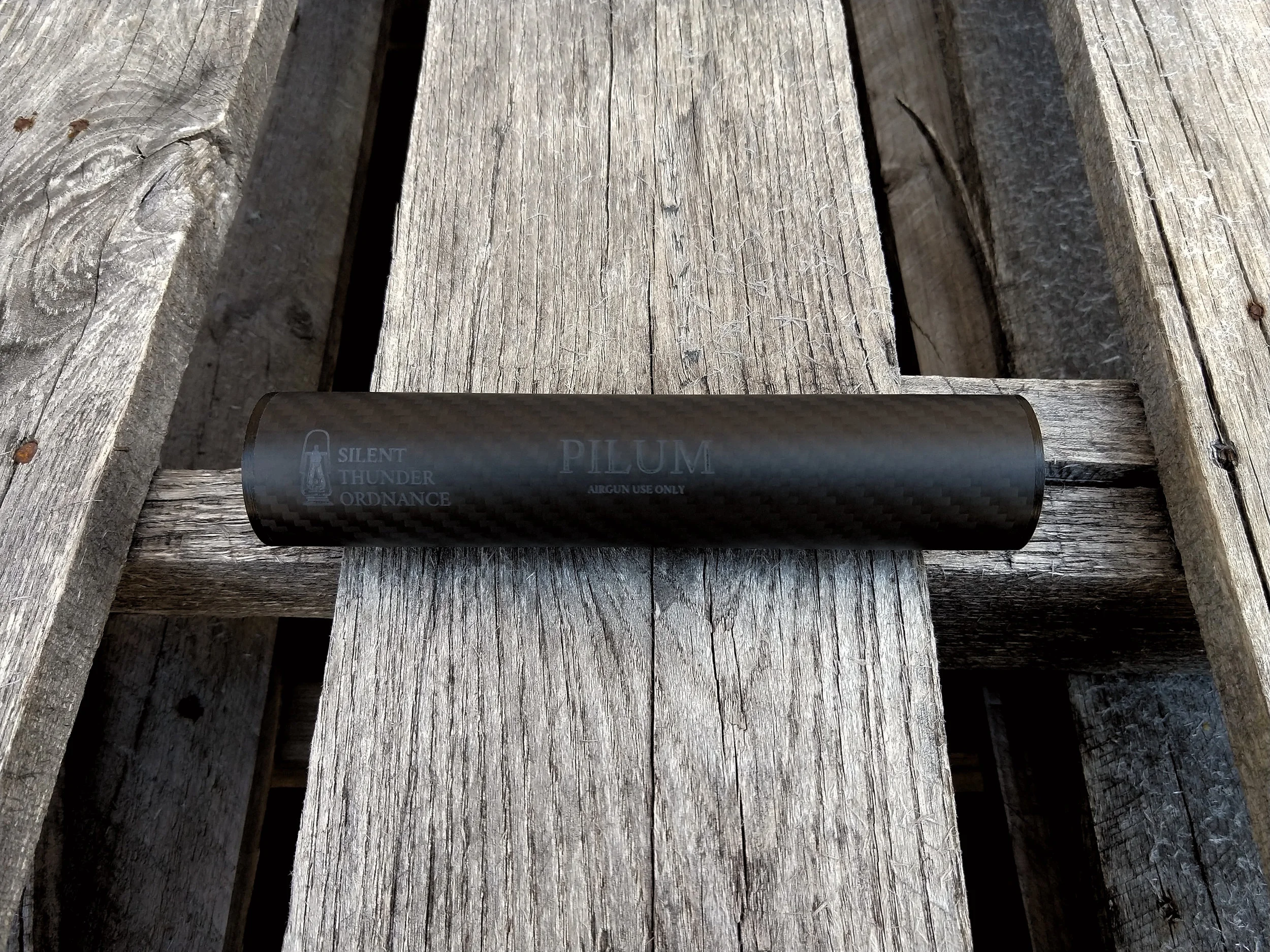

Pilum is a Roman type of javelin or spear, special in that it is unusually long and slender. This moderator takes the proven concepts of the Levitas, but adds about 30% more length and a fair bit more silence. At 35x170mm and 70 grams it is still reasonably small and incredibly light weight. The core is manufactured from an ultra light weight, strong, and solvent resistant 20% high modulus carbon fiber reinforced nylon. (nylon alone is what Glock frames are made out of) It attaches via a 1/2-20UNF thread.

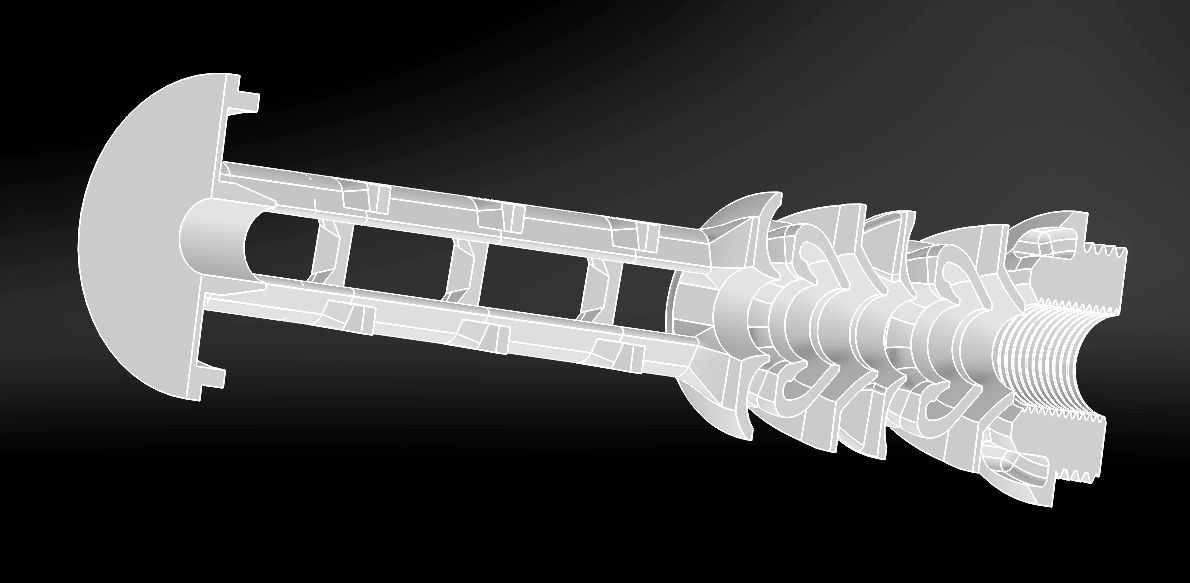

The basic premise of the design though is to use Nikola Tesla’s Gas Diode to reflex air back on itself and stop forward flow in the moderator. The moderator uses a three stage system. First the air is stripped off the pellet, reducing turbulence and improving accuracy. Second it is delayed via compound gas diodes. Finally a damping system muffles the sound. Most moderator designs focus on one of two capabilities, either sound wave damping or flow delaying, and this is copied the entire length of the moderator. Why though should the sound and flow at the back of the moderator be the same as at the front? It didn't make sense to us either, thus the design adapts along its length to maximize efficiency and minimize size and weight, a mere 70 grams. An optional stainless steel thread insert enhances thread durability and adds a scant 3 grams.

Every moderator is made to order, a process which takes two weeks. All designs are considered experimental.

This product is intended for AIRGUN USE ONLY! It is a violation of federal law to use this product in a manner inconsistent with its design intent. More information about the federal court ruling which clarified the legality of airgun moderators within the United States can be found HERE. Local restrictions may still apply. It is the responsibility of the buyer to ensure they are in compliance with all applicable laws. United States Orders Only!
